Resistor Calculator

Choosing the right resistor values can be confusing — but with our Resistor Calculator, you can simplify the process in seconds. This powerful online tool helps you calculate resistor values using color codes, series connections, parallel connections, and even determine the resistance of conductors based on their physical properties.

Whether you’re a student, electronics hobbyist, or professional engineer, this calculator gives you quick, accurate results that make designing circuits effortless.

What is a Resistor?

A resistor is one of the most basic yet essential components in any electronic circuit. It restricts the flow of electrical current, helping to manage voltage levels and protect sensitive components. Resistors are measured in Ohms (Ω) and come in various tolerance levels to ensure precise performance.

Resistors are color-coded with bands that represent their resistance values. For example, a resistor with bands red, violet, brown, and gold corresponds to 270Ω with ±5% tolerance.

How the Color Coding Works:

The resistor color code is an international standard defined by IEC 60062. It provides a universal way to identify the key ratings of electronic components, most commonly their resistance value in ohms. This color-coding system uses distinct colors to represent significant digits, multipliers, tolerance, and in some cases, reliability or temperature coefficient (TC).

Each color band’s meaning depends on its position on the resistor. In a typical four-band resistor, there is a small gap between the third and fourth bands that indicates the correct reading direction (left to right). The four-band type is the most common, but several other variations also exist for high-precision applications.

Significant Figure Component

In a standard four-band resistor, the first and second bands represent the two main digits of the resistance value.

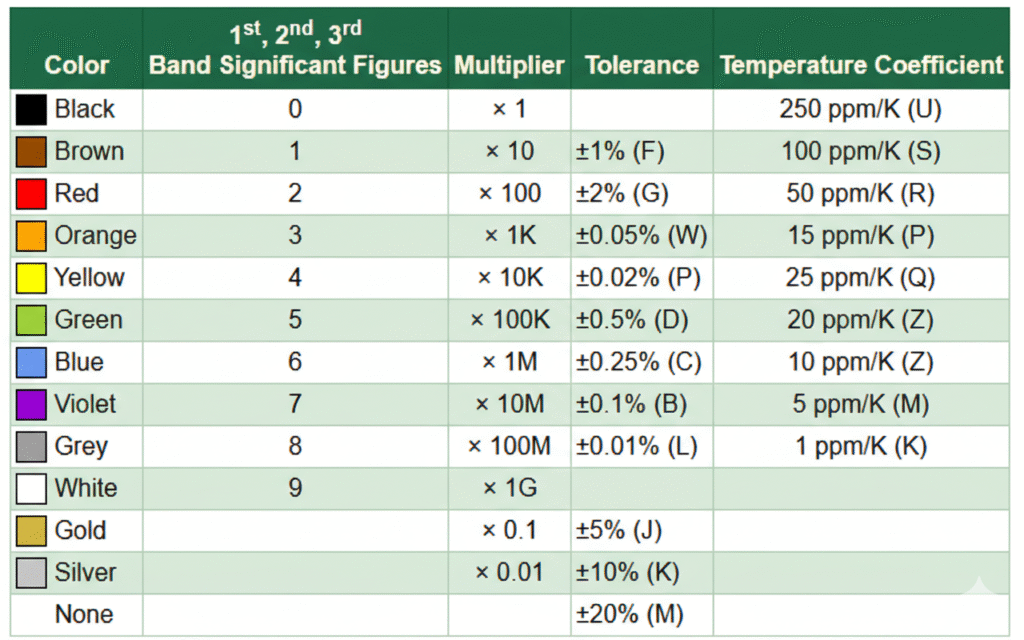

For example, consider a resistor with the colors Green, Red, Blue, and Gold. According to the color code chart:

• The Green band represents the number 5.

• The Red band represents the number 2.

These two digits form the number 52, which will later be multiplied by the value indicated by the third band.

Multiplier

The third band acts as the multiplier. In this example, the Blue band represents a multiplier of one million.
When we multiply the significant digits (52) by one million, the resistor’s nominal value becomes 52,000,000 ohms, or 52 megaohms.

This calculation gives us the standard resistance value, but the actual measured resistance may vary slightly depending on the tolerance band.

Tolerance

The fourth band shows the resistor’s tolerance, which indicates how much the actual resistance may vary from the stated value.
In this example, the Gold band represents a tolerance of plus or minus five percent.
This means that a resistor with a nominal value of 52 megaohms could have an actual resistance anywhere between 49.4 megaohms and 54.6 megaohms.

Tolerance is important in precision circuits where even a small variation in resistance can affect performance.

Reliability, Temperature Coefficient, and Other Variations

Every resistor that uses color coding will have at least three bands — two for the significant figures and one for the multiplier.
However, as precision requirements increase, more bands are added.

Resistors designed for military or high-reliability applications may include a fifth band that indicates reliability, measured as a failure rate percentage per 1,000 hours of service.
In many modern precision resistors, the fifth band instead represents the temperature coefficient, which shows how much the resistance changes with temperature, measured in parts per million per Kelvin (ppm/K).

Five-band resistors are common in high-accuracy circuits. These include three significant figure bands, one multiplier band, and one tolerance band.
Six-band resistors provide even higher accuracy and stability. In this configuration, the first three bands are significant digits, the fourth is the multiplier, the fifth is tolerance, and the sixth represents either reliability or temperature coefficient.

Understanding these variations helps in choosing the right resistor for your project — especially in applications where precision, stability, and reliability are critical.

Parallel Resistor Calculator:

In a parallel circuit, all resistors are connected across the same voltage source. The total resistance in a parallel circuit is always less than the smallest individual resistor.
Our Parallel Calculator applies the following formula:

1/Rtotal​=1/R1​+1/R2​+1/R3​+…

Simply enter resistor values separated by commas, and the tool instantly calculates total resistance in Ohms, kiloohms, or megaohms depending on the magnitude.

This is particularly useful for circuit designers who need to control current flow or increase reliability by adding redundant resistive paths.

Series Resistor Calculator:

When resistors are connected in series, the total resistance equals the sum of all individual resistances:

Rtotal​=R1​+R2​+R3​+…

Our calculator lets you input multiple resistor values, separated by commas, to find the total instantly. Series combinations are commonly used when you need a specific resistance value that isn’t available as a single resistor.

This saves time, prevents manual errors, and simplifies design calculations for both beginners and professionals.

Conductor Resistance Calculator:

The Conductor Resistance Calculator computes resistance based on length, diameter, and material type.
Formula: Resistance = Resistivity multiplied by (Length divided by Cross-sectional Area).

Resistivity is the inverse of conductivity.

By selecting the material, such as copper, aluminum, or silver, and entering the wire’s length and diameter, the tool provides precise resistance results. This is crucial for electrical engineers designing power systems or PCB traces.

Why Use This Resistor Calculator?

✅ Fast, accurate, and user-friendly interface
✅ Handles all resistor-related calculations in one place
✅ Supports both beginners and advanced users
✅ Automatically adjusts units (Ω, kΩ, MΩ)
✅ Helps avoid manual calculation errors

This makes it one of the best online resistor tools available for anyone involved in electronics design or study.

Example Use Case

Imagine you’re designing an LED circuit that needs a specific voltage drop. Using the Color Code and Series Calculators, you can easily find the exact resistance required to limit current and prevent component damage.

Or, when working on a long copper wire, you can use the Conductor Calculator to determine if the resistance will cause significant voltage loss — helping ensure optimal power efficiency in your circuit.

Final Thoughts:

The Resistor Calculator at atozeeonline.com is a must-have companion for anyone working with electronics. From decoding resistor color codes to calculating total resistance in complex networks, it simplifies your workflow while improving precision.

Whether you’re testing components or designing your next Arduino project, this tool saves time, reduces guesswork, and keeps your circuits running efficiently.
